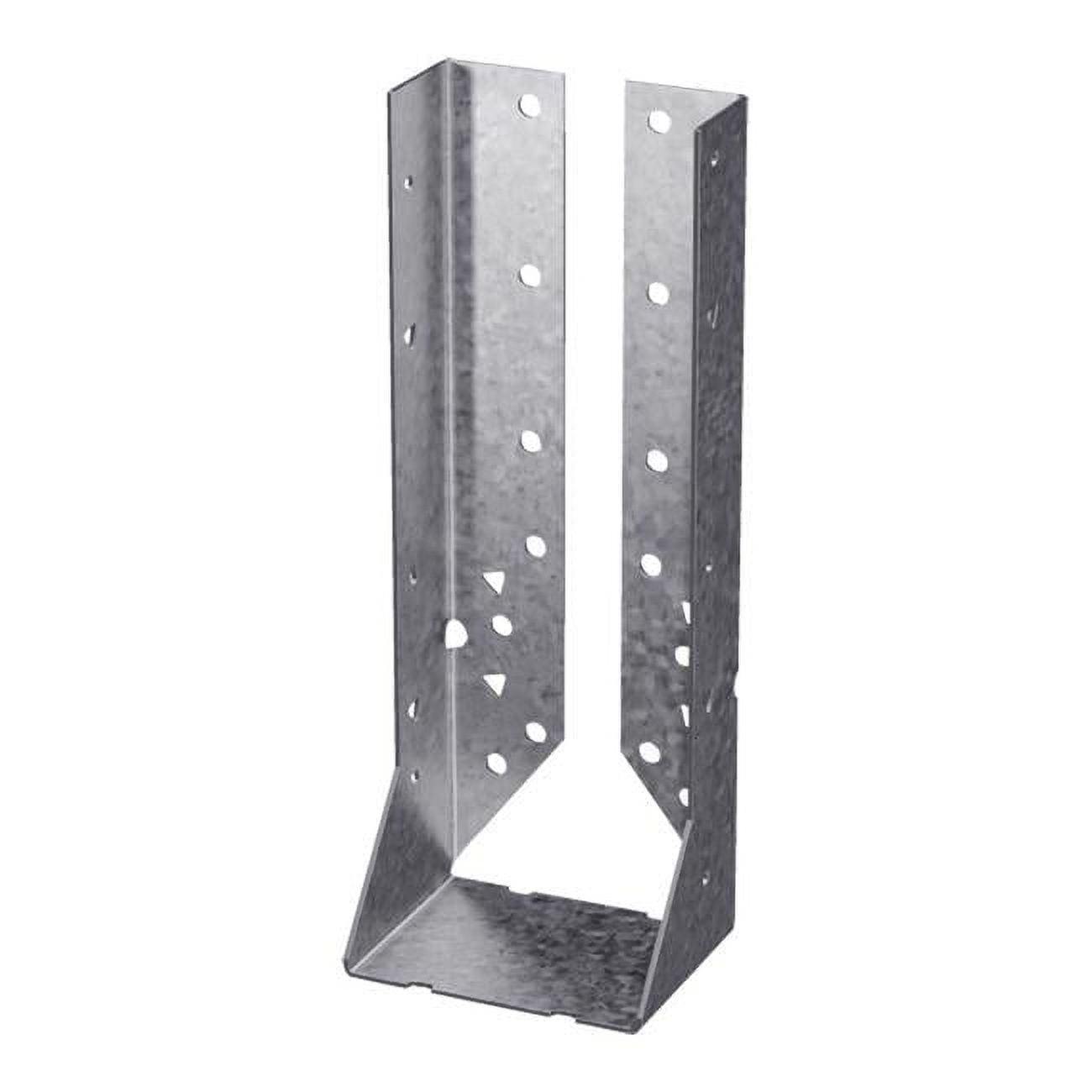

Simpson Strong-Tie 5006524 5.67 x 7 in. 14 Gauge Steel Joist Hanger - Pack of 25
Product details
| Management number | 230817337 | Release Date | 2026/06/18 | List Price | $12.52 | Model Number | 230817337 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Simpson Strong-Tie HUC hangers are the concealed flange version of the HU joist hanger. Concealed flange hangers have the face flanges turned in. The Strong-Tie HUC28-2Z concealed flange hanger features a G185 ZMAX galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153. Most models have triangle and round holes. To achieve maximum loads, fill both round and triangle holes with common nails. These heavy-duty connectors are designed for schools and other structures requiring additional strength, longevity and safety factors.<br><br><br>Extra optional triangle holes for additional load<br>HUC-series hangers are tested, load rated and code compliant<br>Install wood joists to wood, masonry and concrete<br>Seat width: 3-1/8 in.<br>Nominal joist size: Double 2x8
5.67 x 7 in. 14 Gauge Steel Joist Hanger
Our products are assured for high quality and standard. Our products are designed with the up to date designs and creativity. We always work towards to fulfill the requirements of our end users.
Features- Made from the highest quality materials
- Pack of 25
- Width: 5.67 in.
- Gauge: 14 Ga.
- Height: 7 in.
- Material: Steel
- Joist Size: Double 2X8
- Country of Origin: United States of America
- Weight: 0.23 lbs
| Hardware bracket type | Joist Hanger |
|---|---|
| Working load limit | 1 lb |
| Material | Metal |
| Finish | G185 ZMAX galvanized |
| Color | MultiColor |
| Brand | Simpson Strong-Tie |
| Shape | Universal |
| Size | 5.67" x 7" |
| Compatibility | wood joists to wood, masonry and concrete |
| Rec. use | School |
| Thickness | 1 in |
| Features | Heavy-Duty |
| Piece count | 1 |
| Weight | 0.9 lb |
| Has written warranty | No |
| Model | HUC28-2Z |
